Products “ Water Treatment
The Descal-A-Matic water treatment solution is available in both commercial and industrial configurations. The commercial applications are for up to 50 gallons-per-minute (gpm) capacity. Industrial units are capable of up to 200 gpm.
We also offer our Ion Generator for the control of algae and micro-organisms.
The charts below help identify which product may be suitable for your application. If in doubt, please contact us or one of our dealers so we can help you determine the correct solution for your application.
Commercial Descal-A-Matic Unit
| DC-1 | DC-3 | DC-6 | DC-12 | DC-18 | DC-30 | DC-36 | DC-50 | |
|---|---|---|---|---|---|---|---|---|
| Capacity: | ||||||||
| gpm lpm |
1 3.7 |
3 11.3 |
6 22.7 |
12 45.4 |
18 68.1 |
30 113.5 |
36 136.2 |
50 189.2 |
| Press Drop: | ||||||||
| PSI CM/CM2 |
.50 35.1 |
.75 52.7 |
.9 63.2 |
.38 26.7 |
.42 29.5 |
.9 68.1 |
1.46 102.6 |
.97 68.1 |
| Weight: | ||||||||
| lbs kg |
2 .9 |
2 .9 |
3 1.4 |
5 2.3 |
7 3.2 |
7 3.2 |
10 4.5 |
36 16.3 |
| Connect Size: | ||||||||
| A* | 3/4'' | 3/4'' | 1'' | 1 1/4'' | 1 1/2'' | 1 1/4'' | 1 1/2'' | 2 1/2'' |
| Length: | ||||||||
| B* inch mm |
13.5 42.9 |
13.5 342.9 |
14.75 374.65 |
16.75 425.45 |
16.75 425.45 |
22.75 577.85 |
24.5 622.3 |
28 711.12 |
Reference Measurements
Industrial Descal-A-Matic Unit
| DI-8160 | DI-8175 | DI-81100 | DI-81125 | DI-81150 | DI-81175 | DI-81200 | |
|---|---|---|---|---|---|---|---|
| Capacity: | |||||||
| gpm lpm | 60 221.1 | 75 283.8 | 100 378.5 | 125 473.1 | 150 567.7 | 175 622.4 | 200 757.0 |
| Press Drop: | |||||||
| PSI CM/CM2 | .27 18.9 | .37 26.0 | .11 7.7 | .25 17.5 | .42 29.5 | .62 43.5 | .87 61.1 |
| Weight: | |||||||
| lbs kg | 42 19 | 100 45.4 | 110 49.9 | 120 54.4 | 138 62.6 | 155 70.3 | 159 72.1 |
| Flange Size: | 3'' | 3'' | 4'' | 4'' | 4'' | 4'' | 4'' |
| No. of Holes: | 4 | 4 | 8 | 8 | 8 | 8 | 8 |
| Length: | |||||||
| A* inch mm | 24 609.6 | 30.25 768.3 | 17.5 444.5 | 24.5 622.3 | 31.25 793.75 | 37.25 946.15 | 43.75 1111.25 |
| B* inch mm | 3 86.3 | 3 86.3 | 4 114.3 | 4 114.3 | 4 114.3 | 4 114.3 | 4 114.3 |
| C* inch mm | 7.5 190.3 | 7.5 190.3 | 9 228.6 | 9 228.6 | 9 228.6 | 9 228.6 | 9 228.6 |

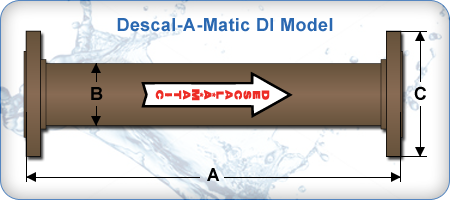

Reference Measurements
From Our Customers:
Descal-A-Matic Water Treatment Unit Common Technical Specs:
Nominal Pipe Size - SCH 40
Flanges are stainless steel. All DI models do not have built-in flow controls. They must be ordered separately.
Max operating pressure, 200PSI
Max water Temperature, 210F
10-Year Warranty on materials and workmanship
1-Year Money-Back Guarantee (restrictions apply)
A Typical Installation
This is a Descal-A-Matic unit installed on a 3,500 Cooling Ton Trane Chiller at a city municipal center's campus. Three separate EddyCurrent tests have been performed in the 17 years the unit has been in place with no defects. No chemicals have been required in that time.
Ion Generator
The Descal-A-Matic Ion Generator provides copper-silver ionization of water for controlling algae, bacteria, legionella and other micro-organisms. It is used on cooling towers, decorative water fountains, swimming pools and spas. Learn more¦
