Products - Water Treatment
The Descal-A-Matic water treatment solution is available in both commercial and industrial configurations. The commercial applications are for up to 50 gallons-per-minutes (190 lpm) capacity. Industrial units are capable of up to 200 gpm (760 lpm).
We also offer our Ion Generator for the control of algae and micro-organisms.
The charts below help identify which product may be suitable for your application. If in doubt, please contact us or one of our dealers so we can help you determine the correct solution for your application.

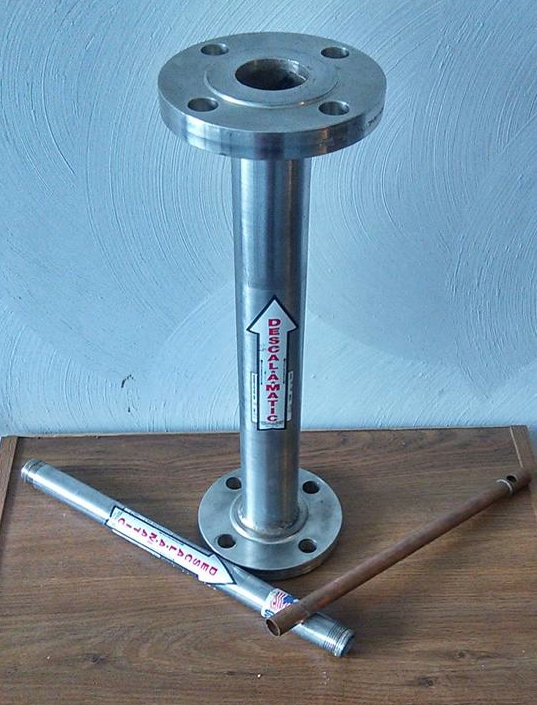

Commercial Descal-A-Matic Unit
Reference Measurements
|
Threaded Variants |
DC-1 |
DC-3 |
DC-6 |
DC-12 |
DC-18 |
DC-30 |
DC-36 |
|
|
Housing Diameter |
.75" NPT |
.75" NPT |
1" NPT |
1.25" NPT |
1.5" NPT |
1.25" NPT |
1.5" NPT |
|
|
Unit Length - Inches |
13.5" |
13.5" |
14.75" |
16.75" |
16.75" |
22.75" |
24.5" |
|
|
Capacity - GPM |
1 |
3 |
6 |
12 |
18 |
30 |
36 |
|
|
Pressure Drop - PSI |
1 |
0.75 |
0.9 |
0.38 |
0.42 |
0.9 |
1.46 |
|
|
Weight - Lbs |
2 |
2 |
3 |
5 |
7 |
7 |
10 |
|
|
Flanged Variants |
DC-12F |
DC-18F |
DC-30F |
DC-36F |
DC-50F |
|||
|
Housing Diameter |
1.25" |
1.5" |
1.25" |
1.5" |
2.5" |
|||
|
Unit Length - Inches |
17.25" |
17.25" |
23.25" |
24.75" |
27.75" |
|||
|
Capacity - GPM |
12 |
18 |
30 |
36 |
50 |
|||
|
Pressure Drop - PSI |
0.38 |
0.42 |
0.9 |
1.46 |
0.97 |
|||
|
Weight - Lbs |
10 |
15 |
14 |
16 |
36 |
|||
|
Flange Diameter /Bolt Holes |
4.6"/4 |
5"/4 |
4.6"/4 |
5"/4 |
7"/4 |
Notes:
- Housing Construction – 316 Stainless Steel.
- Magnetic Core Construction – ASTM B-88 copper tubing with Lead Free, Low Temp, Soft Solder used.
- Fixed Orifice Construction – 316 Stainless Steel.
- Model DC-50F Magnetic Core is a triple tube configuration and available with Flanged Connections only.
- Model “DC” 12, 18, 30 and 36 are available with threaded or flanged housing connections.

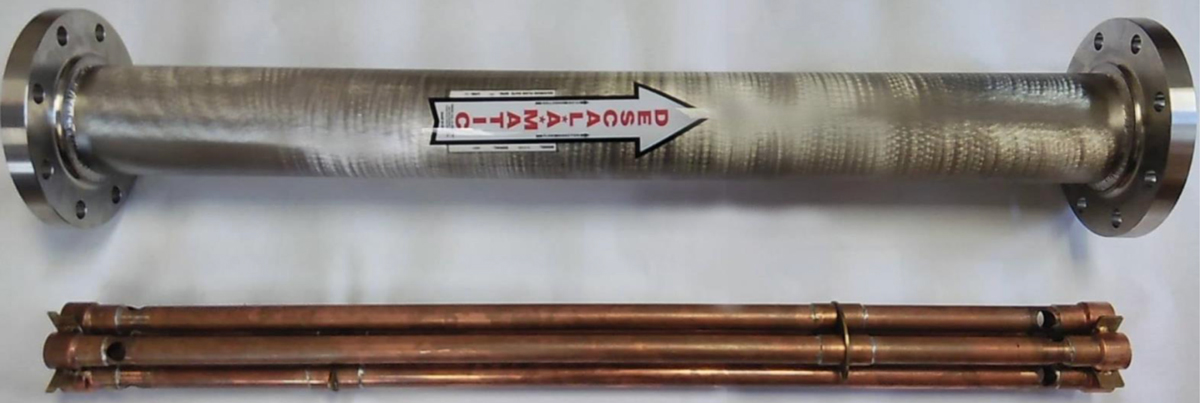

Industrial Descal-A-Matic Unit
Reference Measurements
|
INDUSTRIAL UNITS |
WEIGHT |
LENGTH |
HOUSING ID |
FLANGE / BOLT HOLES |
CAPACITY |
PRESSURE DROP |
|
LBS/kg |
Inches/cm |
Inches/cm |
Inches/cm- Bolt Holes |
GPM / (l/min) |
PSI / BAR |
|
|
DI-8160 |
42 / 19.1 |
24 / 61 |
3 / 7.6 |
7.5 / 19 - 4 |
60 / 227.1 |
.27 / .02 |
|
DI-8175 |
52 / 23.6 |
30 / 76.2 |
3 / 7.6 |
7.5 / 19 - 4 |
75 / 284 |
.37 / .03 |
|
DI-81100 |
53 / 24 |
18.5 / 47 |
4 / 10.2 |
9 / 22.9 - 8 |
100 / 378.5 |
.11 / .007 |
|
DI-81125 |
71 / 32.2 |
24.5 / 62.2 |
4 / 10.2 |
9 / 22.9 - 8 |
125 / 473.2 |
.25 / .02 |
|
DI-81150 |
77 / 35 |
31.25 / 79.4 |
4 / 10.2 |
9 / 22.9 - 8 |
150 / 567.8 |
.42 / .03 |
|
DI-81175 |
95 / 43.1 |
37.25 / 94.6 |
4 / 10.2 |
9 / 22.9 - 8 |
175 / 662.4 |
.62 / .04 |
|
DI-81200 |
100 / 45.4 |
43.5 / 110.5 |
4 / 10.2 |
9 / 22.9 - 8 |
200 / 757.1 |
.87 / .06 |
|
NOTES: DI Models |
||||||
|
* All D-A-M Industrial Models have flanged connections |
||||||
|
* Same construction materials as Commercial DC Models. All 81XX models have four-tube Magni-Core construction |
||||||
|
* DI-81xx models are either sized to pump flow requirements or need a separate Flow Control device installed |
||||||
Housing: 316 Stainless Steel
MagniCore: ANSI Thin Wall Copper
Flanges: 316 Stainless Steel
Solder: Lead Free, Soft Solder
Magnets: AlNiCo
Technical Details
Descal-A-Matic Water Treatment Unit Common Technical Specs:
- Nominal Pipe Size - SCH 40, Stainless Steel
- Flanges are stainless steel. All DI models do not have built-in flow controls. They must be ordered separately.
- Max operating pressure, 200PSI
- Max water Temperature, 210F
- 10-Year Warranty on materials and workmanship
- 1-Year Money-Back Guarantee (restrictions apply)
A Typical Installation
Descal-A-Matic units installed on four 3,500 Ton Cooling Towers for 24 years at a city central heating and cooling plant. The TRANE Chillers underwent four Eddy Current Tests during this period with each test showing ZERO Defect. No chemicals were used in protecting this equipment during this 24 year period.
SCI-62 Algicide / Bactericide, Algae Control
AT LAST¦ A safe, simple and quick method of solving decomposition and odor problems in Wastewater facilities. Learn more...
Ion Generator
The Descal-A-Matic Ion Generator provides copper-silver ionization of water for controlling algae, bacteria, legionella and other micro-organisms. It is used on cooling towers, decorative water fountains, swimming pools and spas. Learn more¦
